The NeuCool™ MR250 is a highly engineered two-phase, direct-to-chip cooling solution designed to provide up to 250kW of liquid cooling capacity to support large-scale deployments of high-density racks.

• System monitoring and controls with NeuView touchscreen and DCIM integration
• Intuitive mimic display visually supports servicing

• Integrated row manifolds from CDU to rack(s) and in-rack manifolds
• Integrated in-server plumbing and vaporators with compatible servers

• Efficiently circulates the refrigerant throughout the IT loop between the servers
• 2 pumps (1+1 redundant) and automatic pump switchover in case of failure ensures maximum uptime
• Redundant core logic and sensors control system

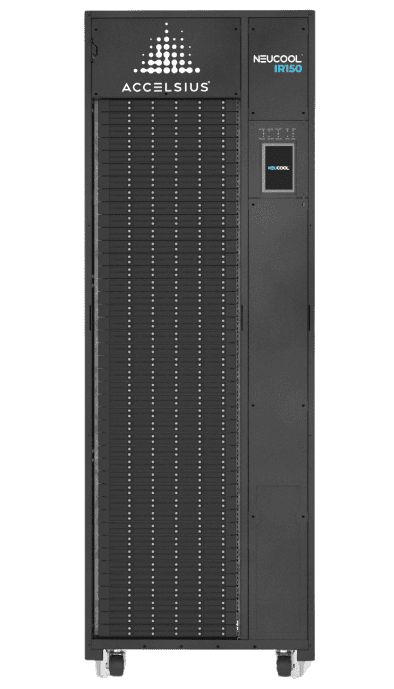

Reimagined for the mission critical liquid cooling era, the NeuCool^® IR150 offers a plug-and-play solution for high-density, two-phase-enabled deployments. The design vertically integrates a two-phase CDU directly into a 200mm portion of an 800mm-wide IT enclosure, providing 150kW of liquid cooling capacity.

• Condenses refrigerant vapor and transfers heat from the IT loop to the facility water loop
• Facility water connection at top-rear

• System monitoring and controls with NeuView touchscreen and DCIM integration
•  Intuitive mimic display visually supports servicing

•  Storage tank provides:
  • Inlet pressure for pumps
  • Expansion volume to accommodate full transients from zero to full power without interruptions

• Integrated liquid and vapor rack manifolds
• Supports plug-and-play deployment of servers enabled with two-phase vaporators and robust in-server plumbing

• Efficiently circulates the refrigerant throughout the IT loop between the servers
• 2 pumps (1+1 redundant) and automatic pump switchover in case of failure ensures maximum uptime
• Redundant core logic and sensors control system
